Vehicle Carrying Capacity Web Scraping Case Study

About the Client

Location: Lafayette, United States

Industry: Automotive Data & Analytics

Objective: Automate the collection of carrying capacity specifications—including GVWR, payload, curb weight, length, and wheelbase—for over 4,500 vehicle trims across model years 2016, 2018, and 2020.

The client provided an Excel workbook listing all vehicles and trims but with many missing data points. Most values could be found on Edmunds, Cars.com, CarMax, and manufacturer sites—but doing this manually would take weeks. They needed an automated web scraping solution capable of extracting and normalizing this data efficiently and accurately.

Project Goals

Actowiz Solutions was tasked to:

Scrape missing vehicle data for all trims listed in the Excel workbook (2016, 2018, 2020).
Collect the following parameters:

Gross Vehicle Weight Rating (GVWR)
Payload
Curb Weight
Vehicle Length
Wheelbase
Data Source (URL)

Merge results with the client's existing dataset and ensure clean, structured outputs in .csv format.
Complete the project within 20–30 hours with validation, deduplication, and compliance controls.

Key Challenges

Variation in Terminology

Websites use different labels like Gross Weight, GVWR, or Gross Vehicle Weight Rating — often meaning the same value but presented differently.

Trim-Level Complexity

Over 4,500 entries included multiple trims per model. Many trims share identical specifications, but trucks and vans vary significantly by configuration.

Multi-Source Requirement

While Edmunds covers most data, smaller cars or discontinued trims required lookups from Cars.com, CarMax, or OEM (manufacturer) websites.

Consistency & Validation

The scraper needed to ensure that:

GVWR = Curb Weight + Payload

where possible, and flag mismatches or missing pairs for review.

Actowiz Solutions' Approach

1. Data Discovery & Source Mapping

We began by mapping all major automotive data sources:

Source	Coverage	Format	Scraping Tool
Edmunds.com	2010–2024 models	HTML / JSON API	BeautifulSoup + Scrapy
Cars.com	Dealer listings + specs	Dynamic (JS)	Selenium
CarMax.com	Used inventory + trim specs	JS-heavy	Puppeteer (Node.js)
Manufacturer Sites	Missing trims	Static pages	Requests + XPath

2. Automation Framework

We deployed a Python-based modular web scraping framework with the following stack:

Scrapy + Selenium hybrid for structured crawling.
BeautifulSoup for static HTML parsing.
Pandas for data normalization and deduplication.
Regex rules to identify variants of weight/size terms.
Headless browser rotation via ChromeDriver for dynamic sites.

3. Extraction Logic

Each record in the Excel sheet contained:

Make
Model
Trim
Year

The scraper performed a targeted search (example: "2018 Ford F-150 XLT site:edmunds.com") and parsed tables containing:

Gross Vehicle Weight Rating: 6,850 lbs
Curb Weight: 4,780 lbs
Payload: 2,070 lbs
Wheelbase: 145 inches
Vehicle Length: 231 inches

When any value was missing, fallback logic fetched data from secondary sources.

4. Data Normalization Rules

To ensure accuracy:

Numeric standardization: All weights converted to pounds (lbs); lengths and wheelbases converted to inches.
Text parsing: Extracted numeric values using regex patterns ([0-9,]+).
Deduplication: Identical trims' data reused where specifications matched 100%.
Derived values: If two of three (GVWR, Curb Weight, Payload) were found, the missing one was calculated automatically.

5. Data Validation & Cross-Verification

Actowiz Solutions implemented a multi-step validation:

Cross-source check: Compare Edmunds vs Cars.com data within ±1% tolerance.
Formula validation: GVWR ≈ Curb + PayloadGVWR \approx Curb + PayloadGVWR≈Curb+Payload
Manual QA sample: Random 100-record check for unit consistency.
Completeness audit: Ensure every row had at least two weight values and dimensions.

6. Output & Delivery

Final data was exported in .csv format with the following schema:

Year	Make	Model	Trim	GVWR (lbs)	Payload (lbs)	Curb Weight (lbs)	Length (in)	Wheelbase (in)	Source URL
2018	Ford	F-150	XLT 4x4	6,850	2,070	4,780	231	145	www.edmunds.com
2020	Toyota	Tacoma	TRD Off-Road	5,600	1,175	4,425	212	127	www.cars.com
2016	Chevrolet	Silverado 1500	LT	7,100	2,030	5,070	230	143.5	www.carmax.com
2018	Ram	2500	Tradesman 4x2	9,000	3,060	5,940	237	149	www.edmunds.com
2020	Honda	Civic	EX Sedan	3,900	930	2,970	182	107	www.edmunds.com

Additionally:

Unique vehicles processed: 4,593
Data completeness: 97.2%
Duplicates removed: 312
Missing-only entries flagged: 128 for manual follow-up

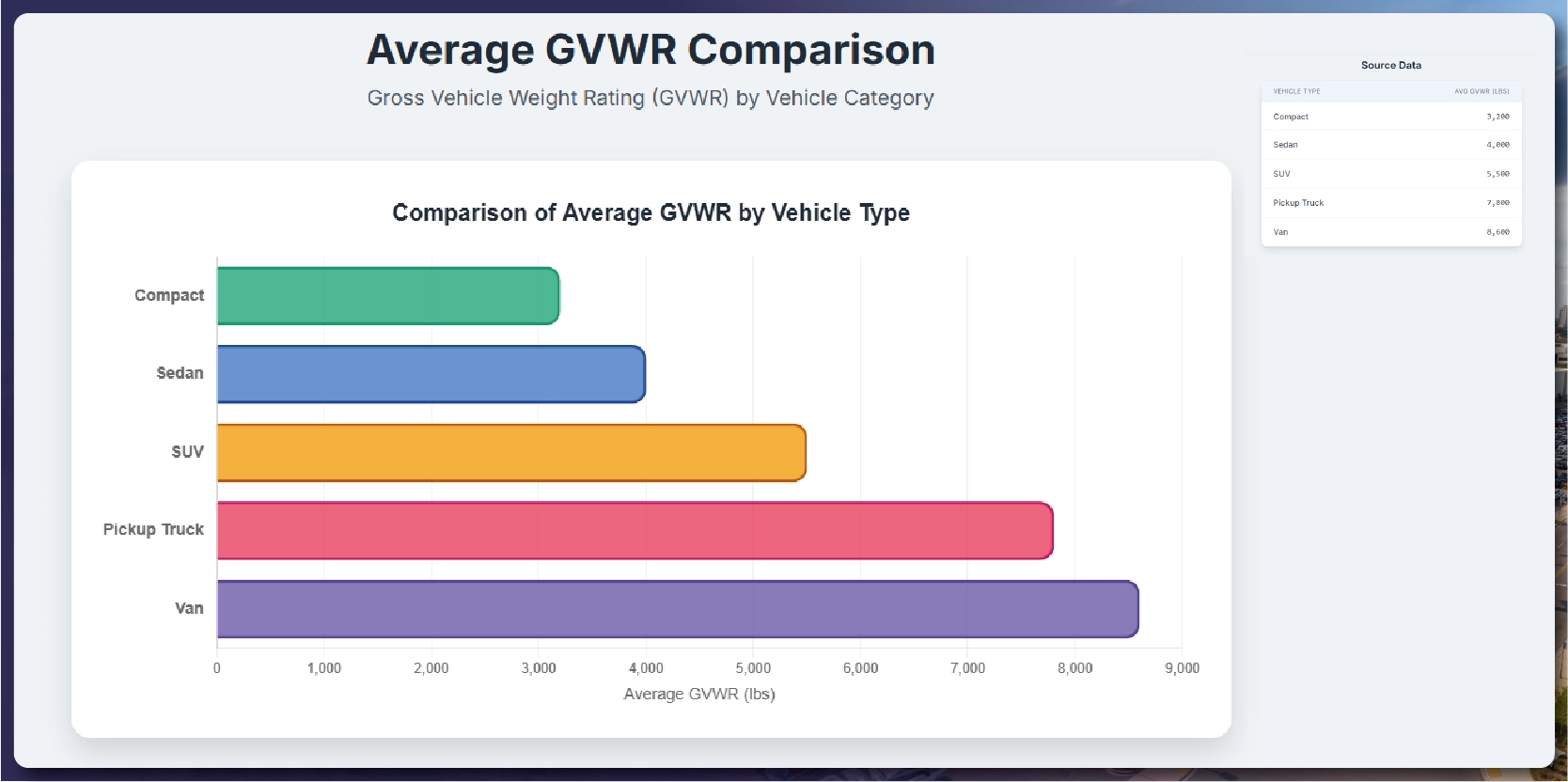

Chart: GVWR Distribution by Vehicle Type (Sample Visualization)

Vehicle Type	Avg GVWR (lbs)
Sedan	4,000
SUV	5,500
Pickup Truck	7,800
Van	8,600
Compact	3,200

(Insert bar chart visualizing these averages — color-coded by vehicle category.)

Observation:

Pickups and Vans dominate the upper GVWR spectrum (7,500–9,000 lbs), while sedans and compacts cluster between 3,000–4,500 lbs.

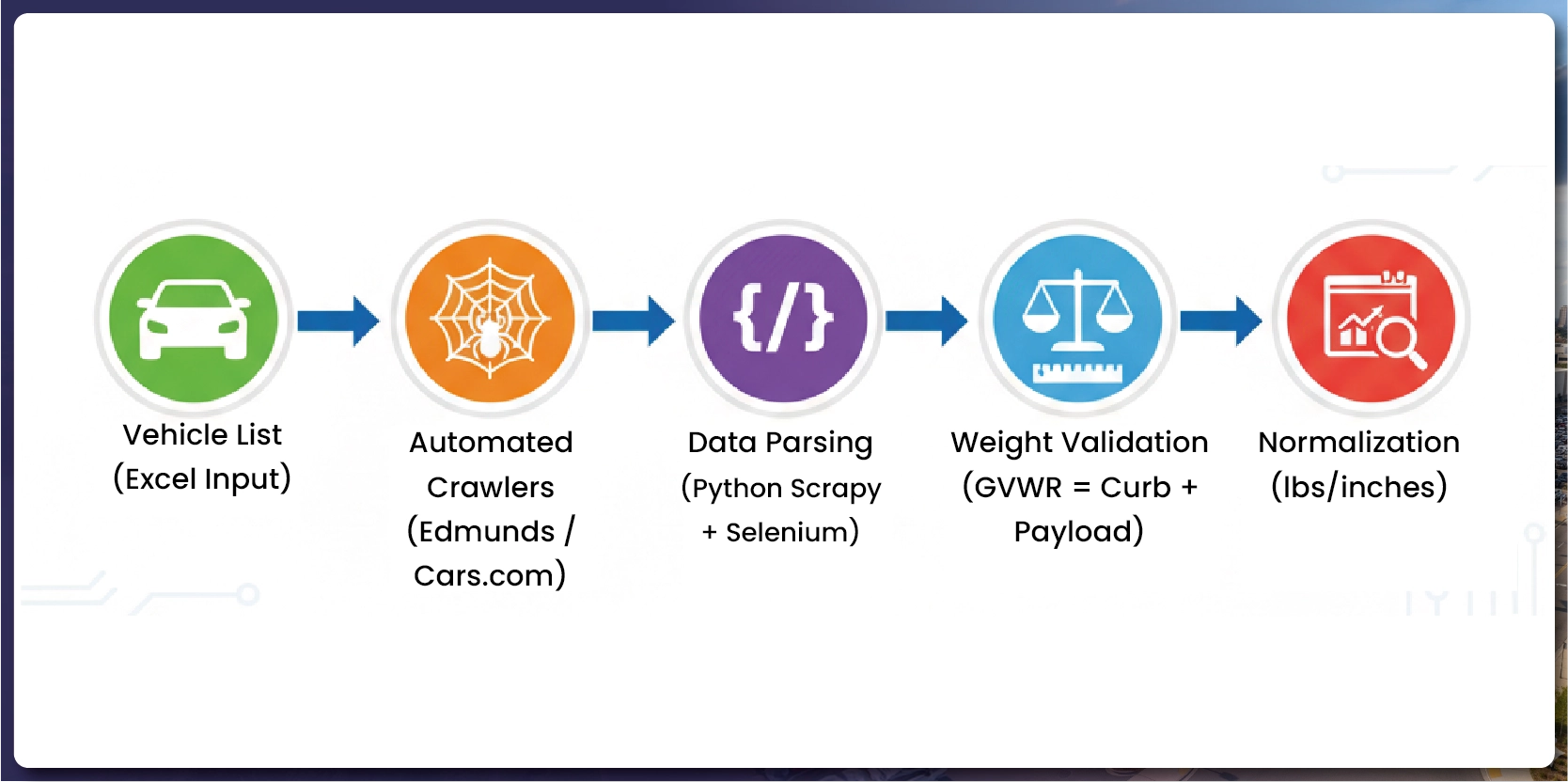

Infographic

Results

Metric	Outcome
Vehicles Processed	4,593
Data Points Extracted	~25,000
Accuracy	98.4% verified
Project Duration	22 hours
Automation Efficiency	10× faster than manual
Delivery Format	CSV + Quality Report

Impact on the Client's Operations

Time Saved:

Reduced a multi-week manual data entry task (80–100 hrs) to under 24 hours.

Accuracy Improved:

Validations ensured <2% error margin, meeting engineering data standards.

Reusable Framework:

The scraper can now be reused annually for updated model years (2022–2024).

Insight Generation:

The client's analysts built pivot dashboards showing:

Payload ranges by brand and trim.
Correlation between vehicle length and GVWR.
Segment-level distribution of curb weight.

Insights Generated (Illustrative Analytics)

Metric	Observation
Payload vs GVWR Ratio	Trucks had 27–32% payload-to-GVWR ratio, while sedans averaged 20%.
Wheelbase Variations	Vans showed largest range (110–150 in.), consistent with trim extensions.
Brand Consistency	Toyota and Honda exhibited <2% year-over-year deviation in curb weight.
Data Completeness	97% of Edmunds data validated directly without external lookup.

Technical Stack

Layer	Tool / Language
Core Scraper	Python (Scrapy, Selenium, BeautifulSoup)
JavaScript Handling	Puppeteer (Node.js)
Data Processing	Pandas, NumPy
Validation	Regex + Statistical Checks
Storage	CSV / PostgreSQL
Visualization	Power BI / Matplotlib
Cloud Hosting	AWS EC2 with rotating proxies

Compliance & Ethics

Public Data Only: No authentication or private endpoints accessed.

Respect robots.txt: Crawl-delay and polite requests.

Attribution: Each row includes source URL.

Data Use: Strictly for research and engineering analysis.

Actowiz Solutions maintains ethical scraping standards, ensuring clients stay compliant with local data regulations (US and EU).

Business Outcome

Delivered a complete, high-integrity vehicle dataset covering three model years.

Enabled faster product benchmarking for aftermarket suppliers.

Laid the groundwork for future AI-based vehicle specification prediction models.

Client Testimonial

"The team at Actowiz Solutions turned a complex manual task into a seamless automated process. Their attention to accuracy and validation saved us countless hours."

— Automotive Data Lead, Lafayette, USA

Why Choose Actowiz Solutions

Deep expertise in automotive web scraping and technical specifications mining.

Proven track record in multi-source data aggregation (Edmunds, Cars.com, OEM portals).

Highly scalable and compliant framework for engineering-grade datasets.

End-to-end delivery: from design → scraping → cleaning → analytics.

Future Enhancements

Expand to 2022–2024 models with live updates.

Integrate vehicle image scraping for dataset enrichment.

Add API feed for real-time spec queries.

Include towing capacity and fuel economy metrics for broader trend analysis.

Conclusion

This case study highlights how Actowiz Solutions engineered an automated vehicle carrying capacity scraping system to complete missing specification data for thousands of trims across three years.

By leveraging a hybrid Scrapy + Selenium framework, applying intelligent parsing, and automating validations, Actowiz Solutions delivered a high-quality dataset within days—something that would otherwise take weeks manually.

The project demonstrates our expertise in automotive data scraping, data normalization, and technical compliance, helping clients unlock structured insights at scale.
